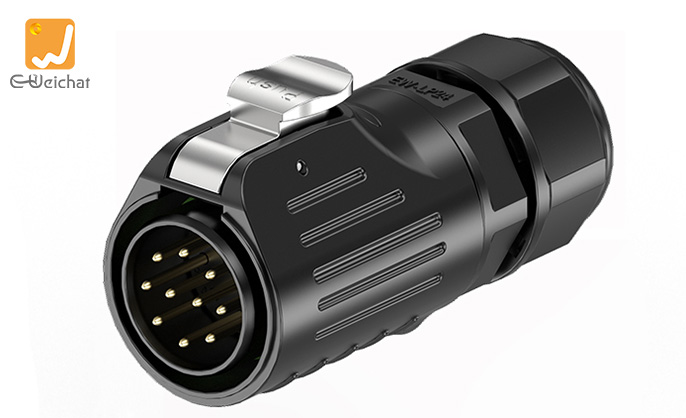

LP24-10P Circular Plug Connector

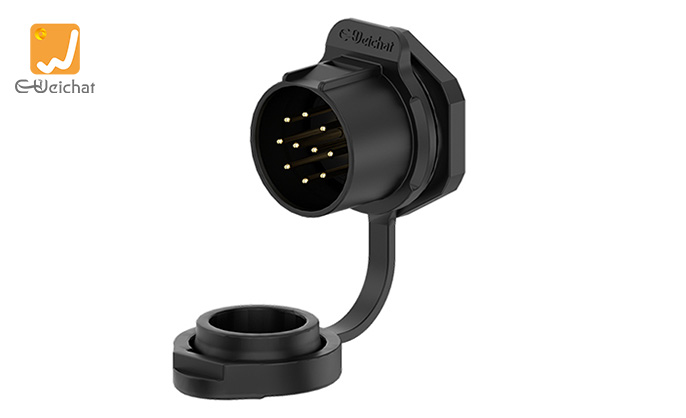

LP24-10P Panel Mount Connector
LP24-10P Circular Plug Connector
LP24-10P Panel Mount Connector
LP24-10P Circular Plug Connector
LP24-10P Panel Mount Connector
LP24-10P Circular Plug Connector
LP24-10P Panel Mount Connector

LP24 Panel Mount Power Connector 10 Pin Waterproof Aviation Plug Solder Type All Plastic

Main parameter
Wiring ModeSolder Type
Installation ModePanel Type
Pins 10pins
Material All Plastic
Applicable Wire Gauge1.5mm²
Waterproof Ring14mm
Protection LevelIP67
Part NoEW-LP24S-1025BMB14/LP24L-10251FB/EW-LP24S-1025BFB14/LP24L-10251MB
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

LP24 Waterproof Connector

Product parameters
Product LP12 LP16 LP20 LP24 LP28
Number of Pins 2-8P 2-9P 2-5/7/9/12P 2-24P 2-6/8P
Rated Current 5/3A 10/5A 20/10/5A 30/10/5A 35/30/15A
Rated Voltage 125/100V 500/250V 500/250V 500/400/250V 500/400/300V
Wire Section 0.34-0.5m㎡ 1-1.5/03.4-0.75m㎡ 2.5-4/1-1.5/0.34-0.75m㎡ 4/1.5/0.5m㎡ 16/10/6/4m㎡
Temperature Range -40℃ ~ +105℃
Cable Diameter Φ3-Φ6mm Φ4-Φ9mm Φ8-Φ12mm Φ9.5-Φ14mm Φ13-Φ20.5mm
Product size

plug size.jpg

panel socket connector.jpg
