In industrial production and various outdoor industrial application scenarios, equipment often faces harsh environmental conditions such as moisture, flooding, and dust. As a key connection device, industrial waterproof connectors can ensure that electrical equipment still maintains reliable electrical connection and mechanical performance in these adverse environments, thereby ensuring the stable operation of the entire industrial system.

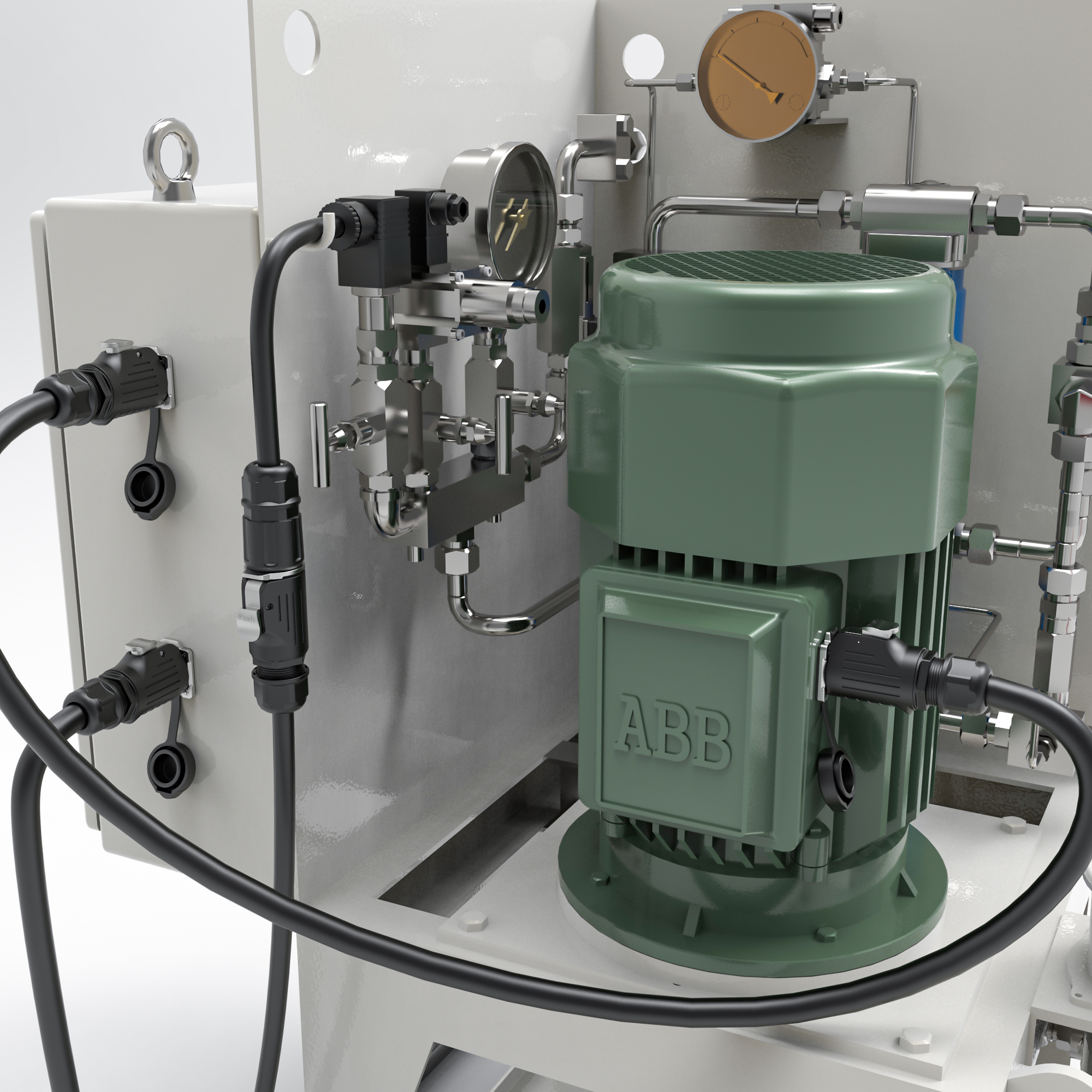

waterproof connector

The waterproof performance of industrial waterproof connectors is mainly based on their sealing design. Usually, elastic sealing materials such as rubber and silicone are used to form a tight sealing structure at the connector shell, interface and other parts to prevent the intrusion of moisture and dust. For example, a sealing ring is designed at the mating point of the connector plug and socket.

When the plug is inserted into the socket, the sealing ring is compressed to fill the gap between the two and form a waterproof barrier. At the same time, some waterproof connectors also use special waterproof coatings or potting technologies to further improve their waterproof performance.

Key points for selecting industrial waterproof connectors

1) Protection level: According to the requirements of the actual use environment, select a connector with a suitable IP protection level. If the equipment is often exposed to rain or soaking outdoors, then IP67 or IP68 waterproof connectors are a more appropriate choice; if there is only occasional moisture or dust in the environment, IP65 may be sufficient.

2) Electrical performance: Consider the electrical parameters of the connector, such as rated voltage, rated current, and breakdown voltage, to ensure that it can meet the electrical requirements of the connected equipment. For example, for high-power industrial equipment, it is necessary to select a connector that can withstand high current to avoid problems such as overload and heating.

3) Mechanical performance: In an industrial environment, the connector may be subjected to mechanical forces such as vibration, impact, and stretching. Therefore, it is necessary to select a connector with good mechanical strength and stability, such as a sturdy shell material and a reliable connection structure, to ensure that there will be no loosening or breakage during long-term use.

4) Dimensions and installation methods: According to the spatial layout and installation requirements of the equipment, select a connector with appropriate dimensions and installation methods. Some equipment has limited space and needs to select a miniaturized connector; for some occasions that require quick installation and removal, a connector with quick plug-in and pull-out function can be selected.

Application fields of industrial waterproof connectors

Industrial waterproof connectors are widely used in various harsh environments due to their high reliability, durability and strong electrical performance. With the continuous development of industrial automation and intelligence, industrial waterproof connectors are also constantly innovating and developing. In the future, industrial waterproof connectors will develop towards higher protection levels, smaller dimensions, higher transmission rates and stronger anti-electromagnetic interference capabilities.

Industrial waterproof connectors play a vital role in the industrial field. They can not only ensure the reliable operation of equipment in harsh environments, but also improve the safety and stability of industrial systems. With the continuous advancement of technology, industrial waterproof connectors will provide stronger support for the development of industrial production.
