In the lighting industry, reliability and long-term stability of electrical connections play a decisive role in overall system performance. Whether applied in outdoor architectural lighting, landscape illumination, street lighting, tunnel lighting, or industrial luminaires, lighting equipment is continuously exposed to environmental challenges such as rain, humidity, dust, temperature changes, and mechanical stress. Under these conditions, connection failure is one of the most common causes of lighting system malfunction. As lighting designs increasingly move toward higher power density, modular installation, and distributed control, the demand for dependable waterproof connection solutions has become more critical than ever.

E-Weichat has developed a comprehensive portfolio of waterproof connectivity products specifically suited for lighting applications, offering reliable solutions from simple power distribution to complex multi-cable junctions. By combining mechanical robustness with advanced sealing technology, E-Weichat products help lighting manufacturers and project installers achieve long-term operational stability while simplifying installation and maintenance processes.

In outdoor lighting projects, connections are often installed inside luminaires, underground junction points, or exposed mounting structures. These locations are vulnerable to water ingress caused by heavy rain, condensation, or ground moisture. Traditional connection methods relying on tape, resin filling, or basic enclosures often degrade over time, leading to corrosion, insulation breakdown, or loose wiring. The introduction of a Waterproof Screw Connector provides a far more reliable alternative. By using a screw-lock wiring mechanism combined with precision sealing components, E-Weichat connectors ensure secure conductor fixation and consistent electrical contact even under vibration or thermal expansion.

For many lighting fixtures, especially LED luminaires, a Screw Wiring Waterproof Connector allows installers to connect power cables quickly and safely without specialized tools. This type of connector is particularly valuable in field installations where efficiency and error reduction are critical. The screw wiring structure ensures stable clamping force on the conductor, while the integrated sealing system protects the connection from moisture and dust. As a result, lighting systems maintain stable power delivery and reduced failure rates throughout their service life.

In applications where cables must be connected inline or branched in open outdoor environments, a waterproof IP68 cable connector becomes an essential component. E-Weichat waterproof IP68 cable connector solutions are designed to withstand continuous exposure to water, including temporary immersion, making them suitable for garden lighting, fountain lighting, and ground-mounted luminaires. Their compact structure allows easy integration into existing cable runs without requiring large protective housings, while maintaining a high level of environmental protection.

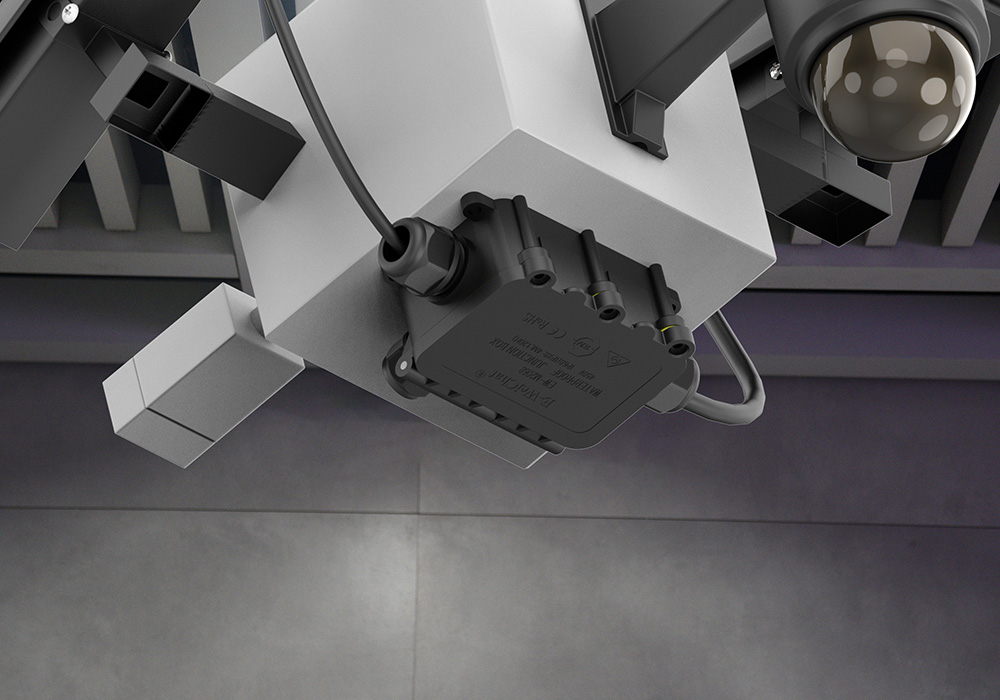

Lighting systems often require multiple cables to be joined at a single point, particularly in large-scale installations such as street lighting networks, façade lighting systems, and commercial outdoor lighting projects. In these cases, a Junction Box Cable Connector IP68 offers a practical and robust solution. E-Weichat junction box connectors are engineered to accommodate multiple cable entries while maintaining consistent sealing performance across all interfaces. By using high-quality sealing gaskets and reinforced enclosures, these junction boxes protect internal wiring from water ingress, dust accumulation, and mechanical impact.

A Waterproof Junction Box plays a crucial role in organizing and protecting electrical connections within lighting systems. Beyond waterproof performance, E-Weichat junction boxes are designed with sufficient internal space to support clean cable routing and strain relief. This design consideration reduces stress on conductors and terminals, which is especially important in installations subject to wind movement or thermal cycling. In long-term outdoor lighting projects, such structural reliability significantly contributes to system durability and reduced maintenance costs.

In a practical lighting application case, E-Weichat waterproof connectors were deployed in an outdoor architectural lighting project designed to illuminate a public commercial complex. The lighting system included façade-mounted LED fixtures, landscape lighting, and pathway illumination, all operating continuously under varying weather conditions. To ensure consistent performance, Waterproof Screw Connector solutions were used inside luminaires for internal wiring, while waterproof IP68 cable connector products enabled secure inline connections between fixtures. Junction Box Cable Connector IP68 units were installed at cable branching points, providing protected distribution without the need for additional enclosures. The integration of Waterproof Junction Box components ensured reliable operation throughout seasonal rain, temperature changes, and daily on-off cycling.

Advantages

Advantage One

Fast and Convenient
Advantage Two

Customization
