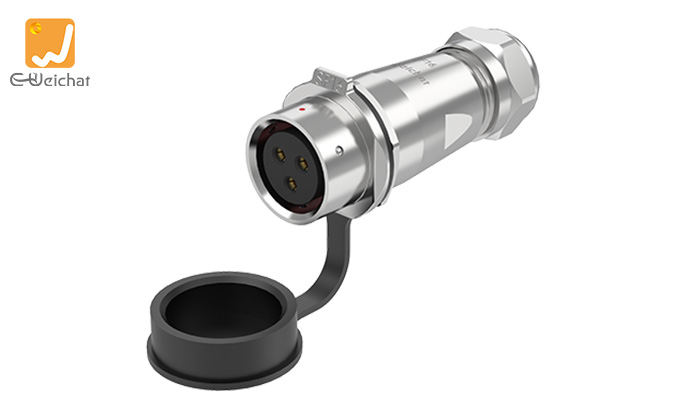

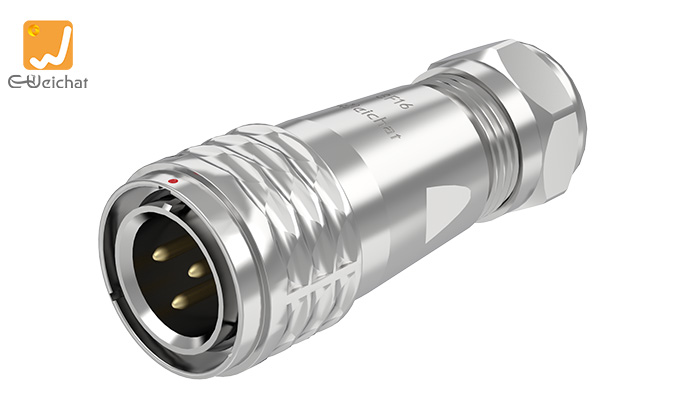

SF16-3P Circular Plug Socket
SF16-3P Circular Plug Socket
SF16-3P Circular Plug Socket
SF16-3P Circular Plug Socket

SF16 3 Pin Standard Circular Connector Waterproof Wire Connectors IP67 Push-Pull All Metal

Main parameter
Wiring ModeSolder Type
Installation ModeDocking Type
Pins 3pin
MaterialAll Metal
Wre Sizemm2/AWG2000
Contact Resistance mΩ2.5
Protection LevelIP67
Part NoSF16J304-SF16K307
Product Categories
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features
Product parameters
Pin 2 3 4 5 7 9
Rated Current(A) 10A 10A 5A 5A 5A 5A
Contact Diameter Φ1.5*2 Φ1.5*3 Φ1.0*4 Φ1.0*5 Φ1.0*7 Φ0.7*9
Rated Voltage(ac.v) 500V 500V 500V 500V 400V 400V
Withstand Voltage(AC,V)1 min 1500V 1500V 1500V 1500V 1200V 1200V
Contact Resistance mΩ 2.5 2.5 5 5 5 5
Welding Wire Gauge mm²/AWG 2000 2000 2000 2000 2000 2000
Product size
