LP24-HDMI Device Waterproof Connector Panel Plug Connector Waterproof Aviation Plug

Main parameter
Wiring ModeThrough Type
Installation ModePanel Type
Pins HDMI
MaterialMetal + Plastic
Waterproof Ring5-7mm
Protection LevelIP67
Part No
Product Categories
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

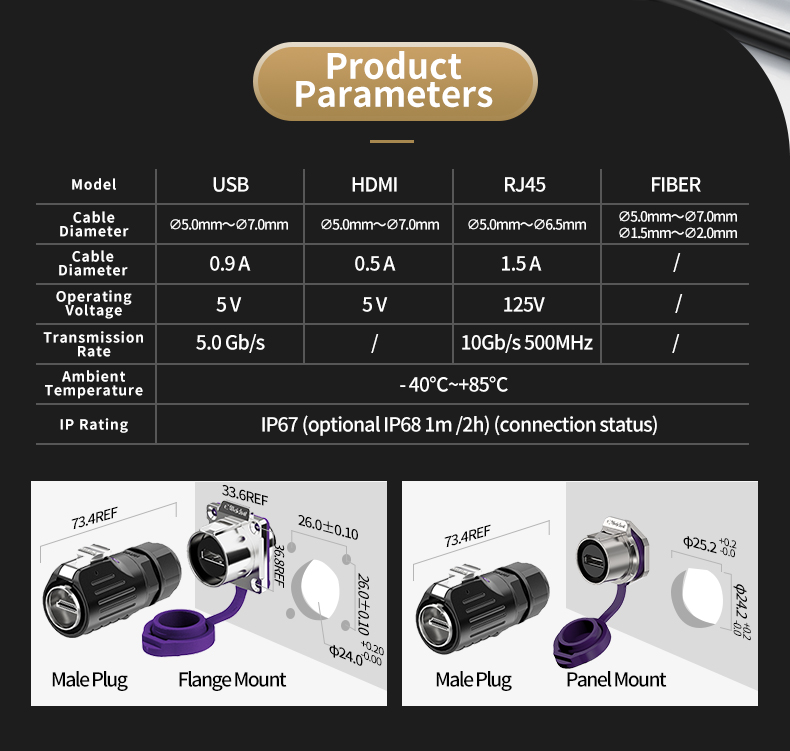

Product parameters
Interface Data Communication
Connection Method Inline
Rated Current 0.5A
Rated Voltage 5V
Transmission Rate 5.0Gb/s
Temperature Range -40℃ ~ +85℃
Suitable Wire Diameter ∅5.0mm~∅7.0mm (USB/HDMI)
Product size

HDMI-plug size.jpg

HDMI-panel socket.jpg
