LP24-4P Circular Plug Connector
LP24-4P Outdoor Waterproof Electrical Wire Connector
LP24-4P Outdoor Waterproof Electrical Wire Connector
LP24-4PCircular Plug Connector
LP24-4P Circular Plug Connector
LP24-4P Outdoor Waterproof Electrical Wire Connector
LP24-4P Outdoor Waterproof Electrical Wire Connector
LP24-4PCircular Plug Connector

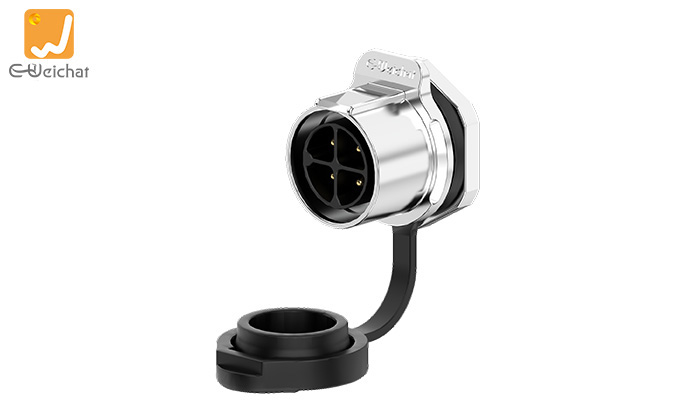

LP24 Panel Outdoor Waterproof Wire Connectors 4 Pin Waterproof Aviation Plug Solder Type

Main parameter
Wiring ModeSolder Type
Installation ModePanel Type
Pins 4pins
Material Plastic + Metal
Applicable Wire Gauge4mm²
Waterproof Ring14mm
Protection LevelIP67
Part No
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

LP24 Waterproof Connector

Product parameters
Product LP12 LP16 LP20 LP24 LP28
Number of Pins 2-8P 2-9P 2-5/7/9/12P 2-24P 2-6/8P
Rated Current 5/3A 10/5A 20/10/5A 30/10/5A 35/30/15A
Rated Voltage 125/100V 500/250V 500/250V 500/400/250V 500/400/300V
Wire Section 0.34-0.5m㎡ 1-1.5/03.4-0.75m㎡ 2.5-4/1-1.5/0.34-0.75m㎡ 4/1.5/0.5m㎡ 16/10/6/4m㎡
Temperature Range -40℃ ~ +105℃
Cable Diameter Φ3-Φ6mm Φ4-Φ9mm Φ8-Φ12mm Φ9.5-Φ14mm Φ13-Φ20.5mm
Product size

plug size.jpg

panel size connector.jpg
