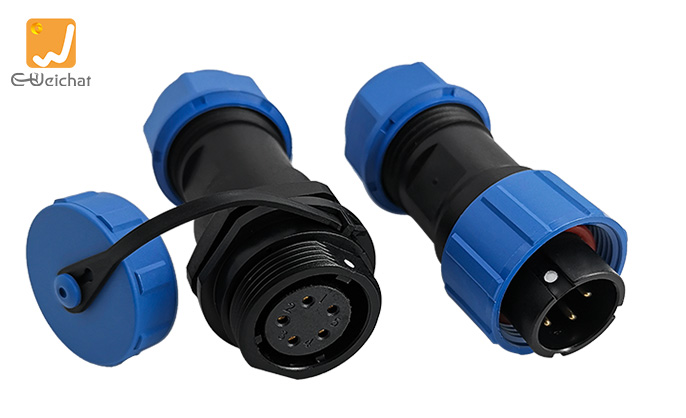

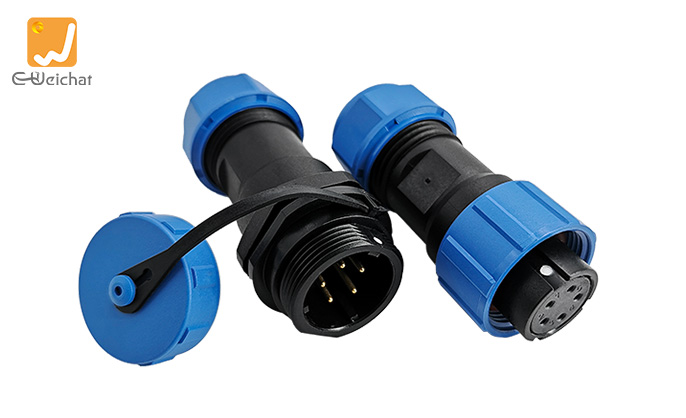

SP17 5 Pin Circular Plug Socket Outdoor Cable Connector IP68 All Plastic

Main parameter
Wiring ModeSolder Type
Installation ModeDocking Style
Pins 5pin
MaterialAll Plastic
Cable Outer Diameter Range5-8mm
Insulation Resistance 2000MΩ
Protection LevelIP68
Part NoSP-1711P-5P/SP-1710S-5P/SP-1711S-5P/SP-1710P-5P

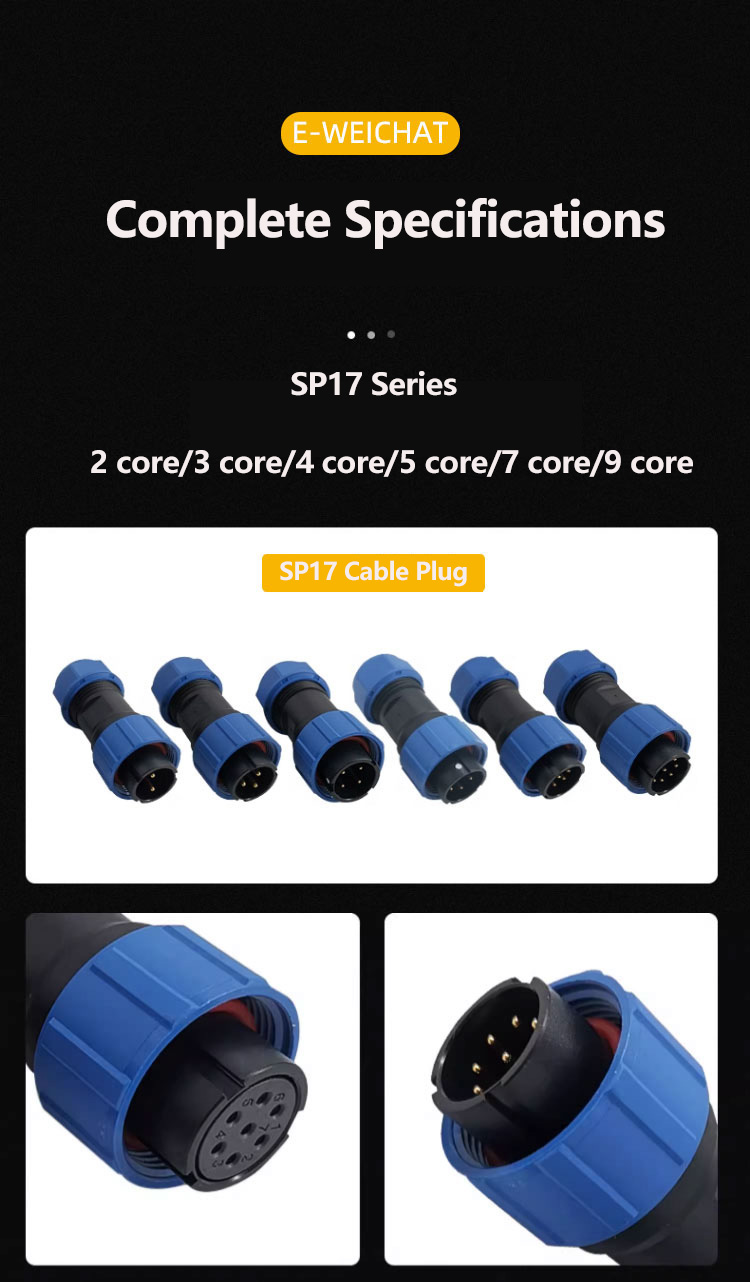

Product Specifications
Product features Product parameters Product size Product recommendations Product application

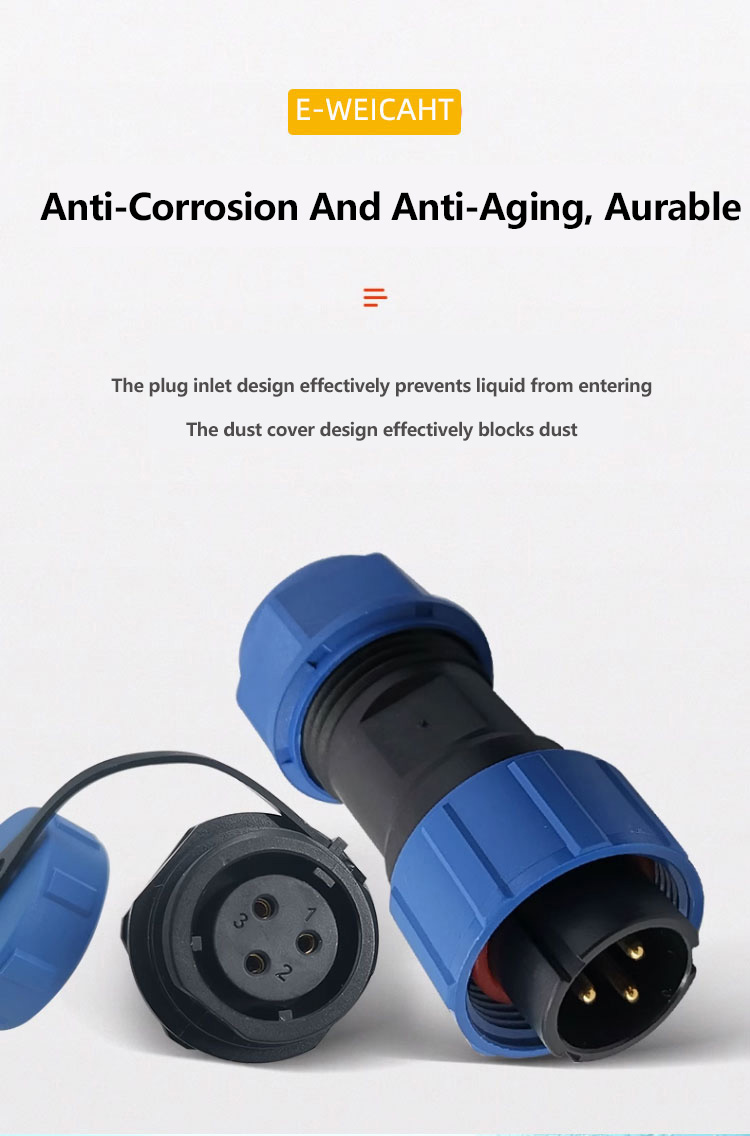

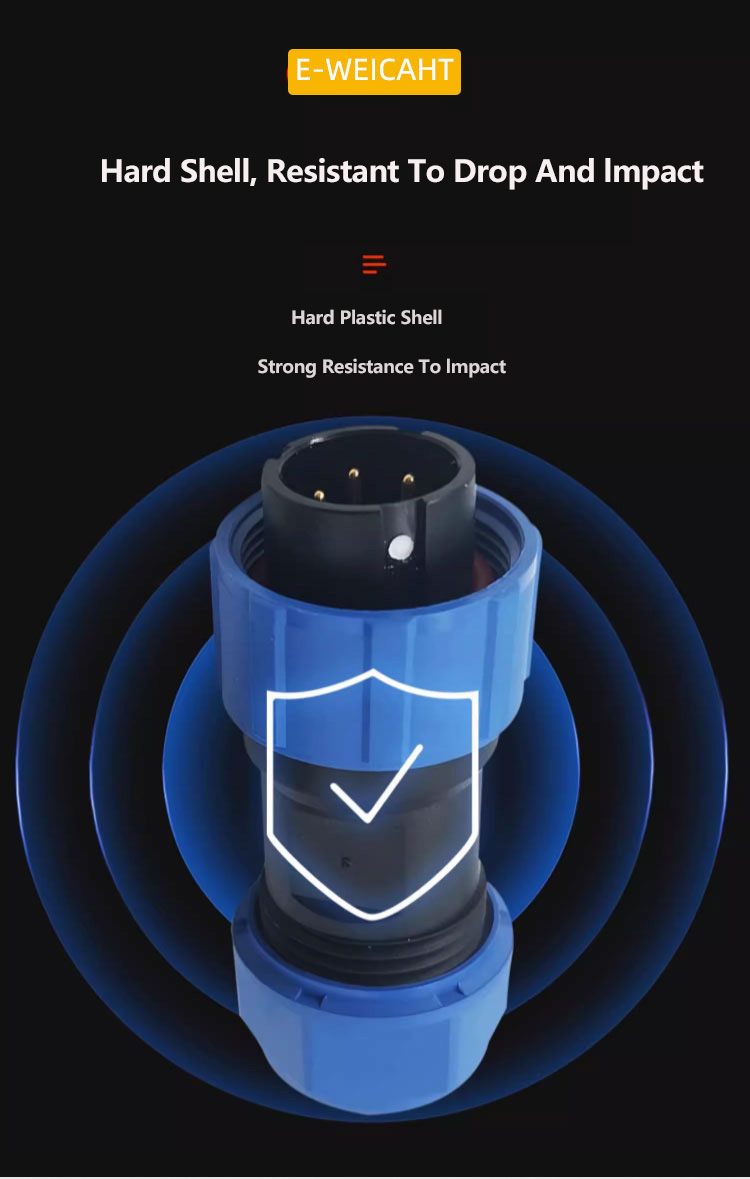

Product features

Circular Connectors

Circular Connectors

Circular Connectors

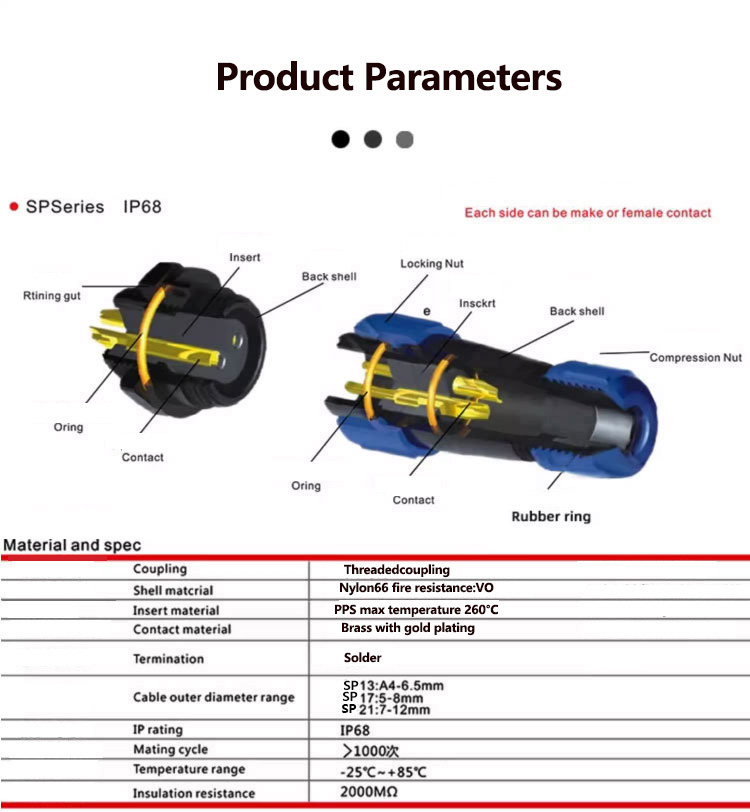

Product parameters
Pin 2 3 4 5 7 9
Rated Current(A) 10A 10A 5A 5A 5A 3A
Contact Diameter Φ1.5*2 Φ1.5*3 Φ1.0*4 Φ1.0*5 Φ1.0*7 Φ1.0*9
Rated Voltage(ac.v) 500V 500V 500V 500V 500V 500V
Withstand Voltage(AC,V)1 min 1500V 1500V 1500V 1500V 1500V 1500V
Contact Resistance mΩ 2.5 2.5 5 5 5 5
Welding Wire Gauge mm²/AWG ≤2/14 ≤2/14 ≤0.785/18 ≤0.785/18 ≤0.785/18 ≤0.785/18

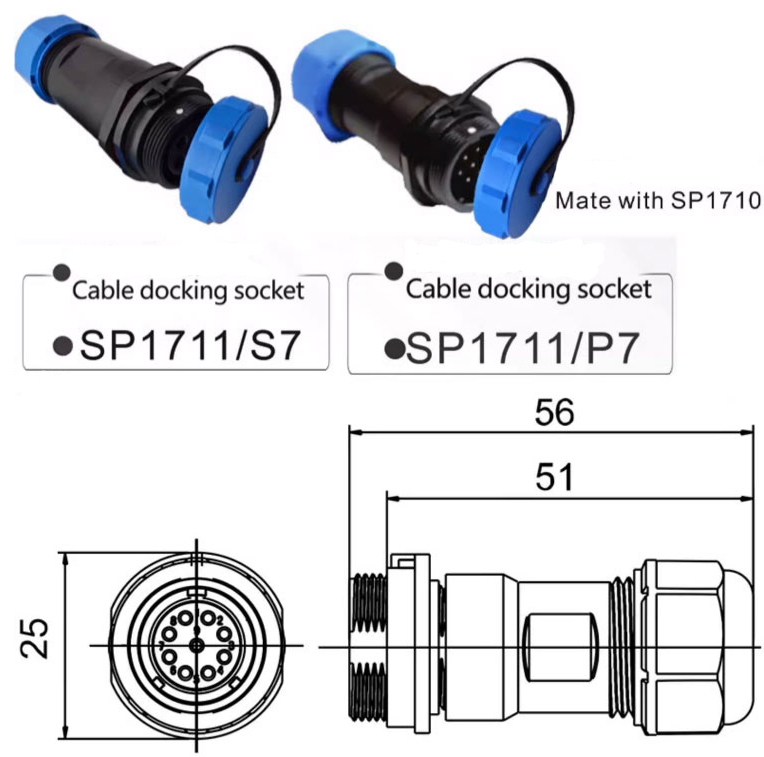

Product size

Circular Connectors
