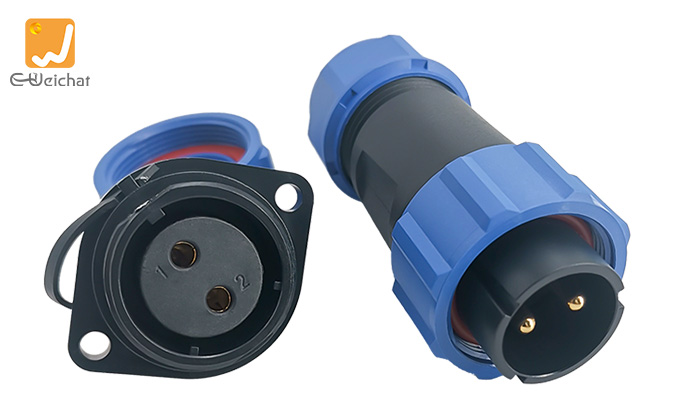

SP21 2 Pin Circular Plastic Wire Connector Flange Outdoor Cable Connector IP68

Main parameter
Wiring ModeSolder Type
Installation ModeFlange Style
Pins 2pin
MaterialAll Plastic
Cable Outer Diameter Range7-12mm
Insulation Resistance 2000MΩ
Protection LevelIP68
Part NoSP2113/S2-SP2110/P2
Product Specifications
Product features Product parameters Product size Product recommendations Product application

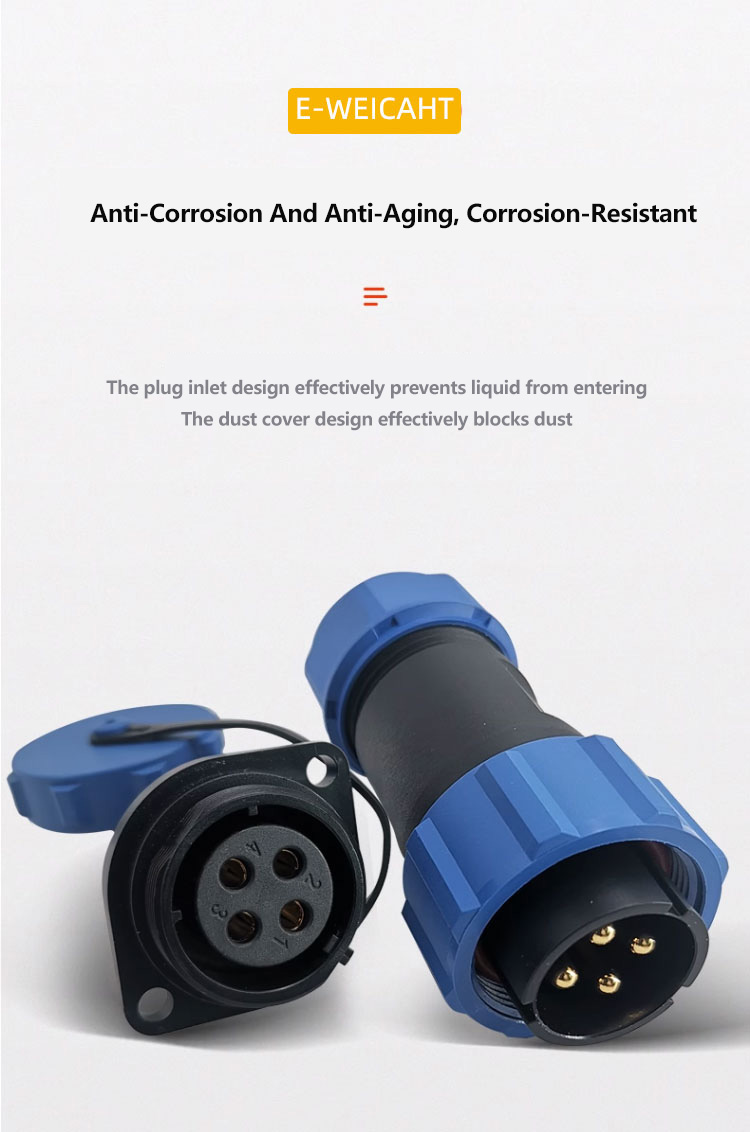

Product features

Circular

Circular Connector

Circular Connector

Circular Connector

Circular Connectors

Circular Connectors

Circular Connectors

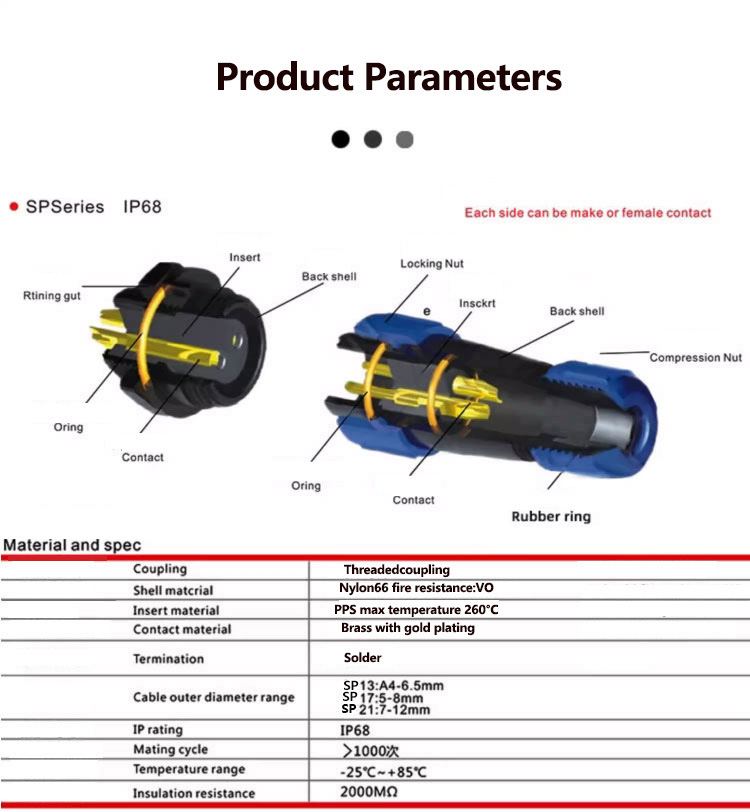

Product parameters
Pin 2 3 4 5A
Rated Current(A) 30A 30A 30A 30A
Contact Diameter Φ3.0*2 Φ3.0*3 Φ3.0*4 Φ3.0*2
Rated Voltage(ac.v) 500V 500V 500V 500V
Withstand Voltage(AC,V)1 min 1500V 1500V 1500V 1500V
Contact Resistance mΩ 1 1 1 1
Welding Wire Gauge mm²/AWG ≤4.17/11 ≤4.17/11 ≤4.17/11 ≤4.17/11
Pin 5B 5C 7 9 12
Rated Current(A) 5A/30A 15A 15A 5A 5A
Contact Diameter Φ3.0*2/Φ1.0*3 Φ2.0*5 Φ2.0*5 Φ1.0*9 Φ1.0*12
Rated Voltage(ac.v) 500V 500V 500V 500V 400V
Withstand Voltage(AC,V)1 min 1500V 1500V 1500V 1500V 1200V
Contact Resistance mΩ 1 2.5 2.5 5 5
Welding Wire Gauge mm²/AWG ≤4.17/11-≤0.785/18 ≤2/14 ≤2/14 ≤0.785/18 ≤0.785/18

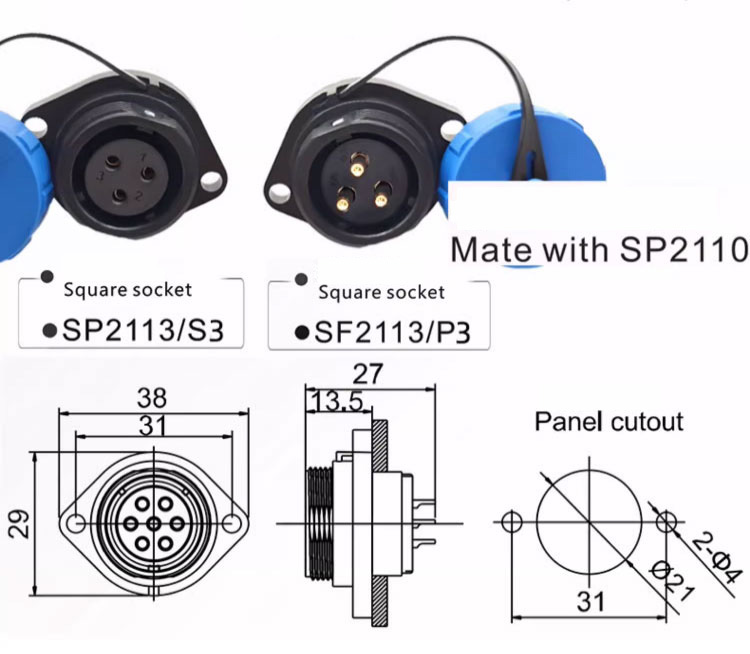

Product size

Circular Connectors
