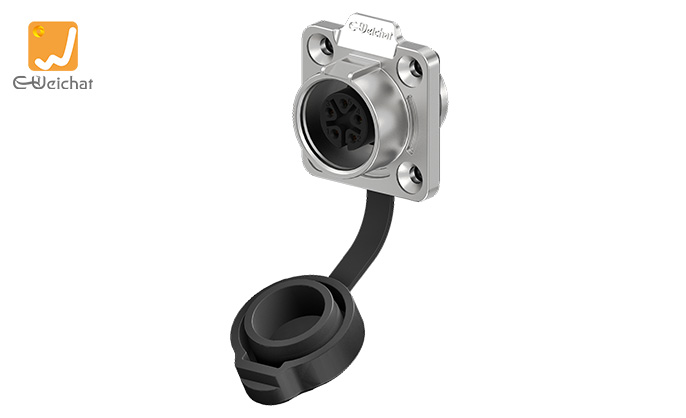

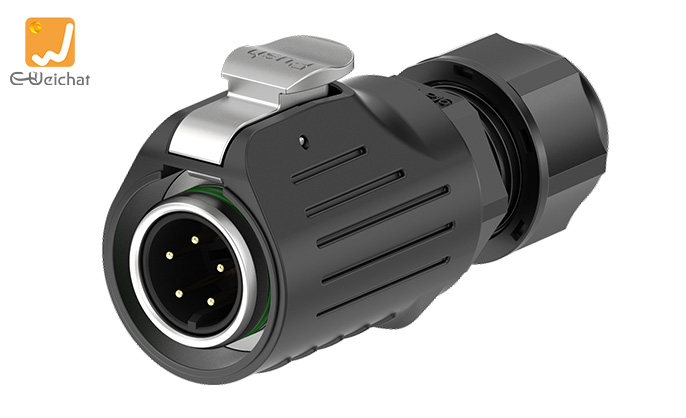

LP16 5A Power Waterproof Connector Solder Type Flange Metal 5 Pin Reverse Mounting Aviation Plug Socket

Main parameter
Wiring ModeSolder Type
Installation ModeFlange Type
Pins 5pins
MaterialMetal + Plastic
Applicable Wire Gauge0.5 mm²
Waterproof Ring7-9mm
Protection LevelIP68
Part No
Product Categories
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

LP16 waterpoor connector

Product parameters
Product LP12 LP16 LP20 LP24 LP28
Number of Pins 2-8P 2-9P 2-5/7/9/12P 2-24P 2-6/8P
Rated Current 5/3A 10/5A 20/10/5A 30/10/5A 35/30/15A
Rated Voltage 125/100V 500/250V 500/250V 500/400/250V 500/400/300V
Wire Section 0.34-0.5m㎡ 1-1.5/03.4-0.75m㎡ 2.5-4/1-1.5/0.34-0.75m㎡ 4/1.5/0.5m㎡ 16/10/6/4m㎡
Temperature Range -40℃ ~ +105℃
Cable Diameter Φ3-Φ6mm Φ4-Φ9mm Φ8-Φ12mm Φ9.5-Φ14mm Φ13-Φ20.5mm
