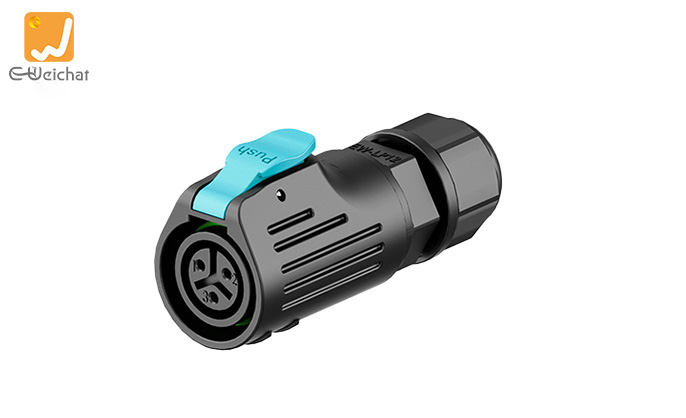

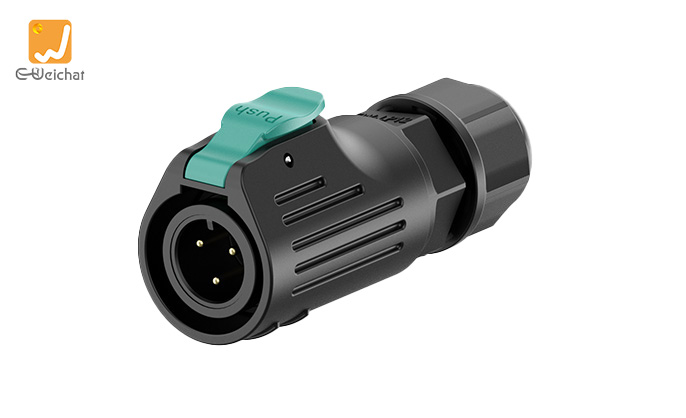

LP12-3P Circular Plastic Wire Connector

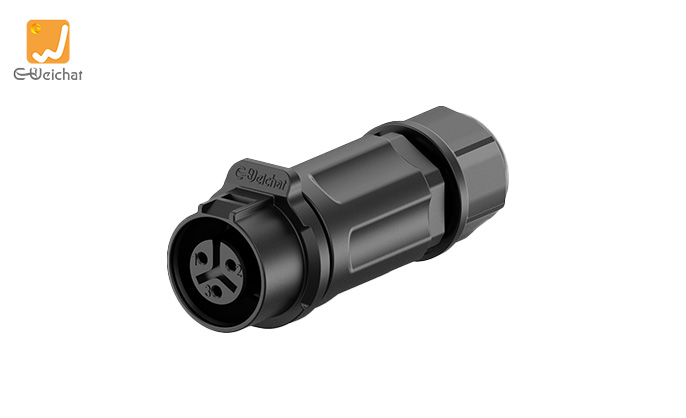

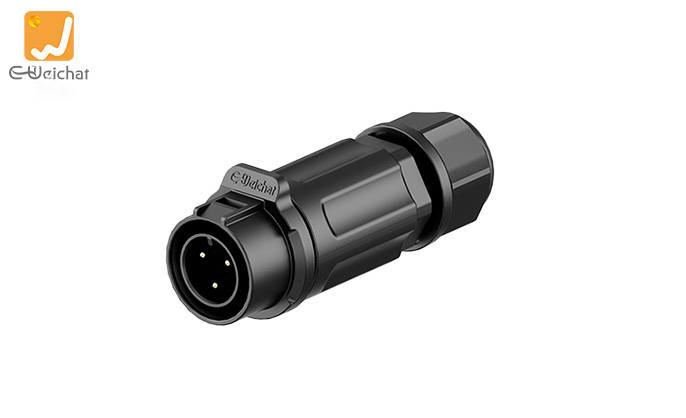

LP12-3P Circular Connector Electrical
LP12-3P Circular Connector Electrical
LP12-3P Circular Plastic Wire Connector
LP12-3P Circular Plastic Wire Connector
LP12-3P Circular Connector Electrical
LP12-3P Circular Connector Electrical
LP12-3P Circular Plastic Wire Connector

LP12 Solder Type 3Pin Wire to Wire 5A Power Circular Plastic Wire Connector Aviation Plug Socket

Main parameter
Wiring ModeSolder Type
Installation ModeWire to Wire
Pins 3pins
Material Plastic
Applicable Wire Gauge0.75~1 mm²
Waterproof Ring5-7mm
Protection LevelIP67
Part NoEW-LP12S-0315BMB07/EW-LP12L-03151FB/EW-LP12S-0315BFB07/EW-LP12L-03151MB
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

LP Waterproof Connector

Product parameters
Product LP12 LP16 LP20 LP24 LP28
Number of Pins 2-8P 2-9P 2-5/7/9/12P 2-24P 2-6/8P
Rated Current 5/3A 10/5A 20/10/5A 30/10/5A 35/30/15A
Rated Voltage 125/100V 500/250V 500/250V 500/400/250V 500/400/300V
Wire Section 0.34-0.5m㎡ 1-1.5/03.4-0.75m㎡ 2.5-4/1-1.5/0.34-0.75m㎡ 4/1.5/0.5m㎡ 16/10/6/4m㎡
Temperature Range -40℃ ~ +105℃
Cable Diameter Φ3-Φ6mm Φ4-Φ9mm Φ8-Φ12mm Φ9.5-Φ14mm Φ13-Φ20.5mm
Product size
