M23MF Self Locking Waterproof Connector Male Female Rear Panel Screwless Connectors

Main parameter
Wiring ModeCrimping Type
Installation ModeRear Panel
Pins 3pins
MaterialPlastic
Applicable Wire Gauge0.5~4mm²
Waterproof Ring5-9mm;9-12mm
Protection LevelIP68
Part No
Product Categories
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features


Product parameters
ProductM15M19M23M28P23P25
Wire Section0.5-1.5 m㎡
4/5P 0.5-1.5 m㎡ 2/3P 0.5-2.5m㎡4/5P 0.5-2.5 m㎡ 2/3P 0.5-4m㎡5/6P 0.5-2.5 m㎡ 2/4P 0.5-6m㎡0.5-2.5 m㎡0.5-2.5 m㎡
Rated Current10A2/3P:20A 4/5P:16A2/3P:30A 4/5P:15A2/4P:50A 5/6P:20A16A16A
Rated Voltage450V
Temperature Range-40℃ ~ +105℃
Outer Diameter5-9mm 9-12mm5-9mm 9-12mm 10-14mm5-9mm 9-12mm5-9mm 9-12mm 10-14mm5-9mm 9-12mm5-9mm 9-12mm 10-14mm

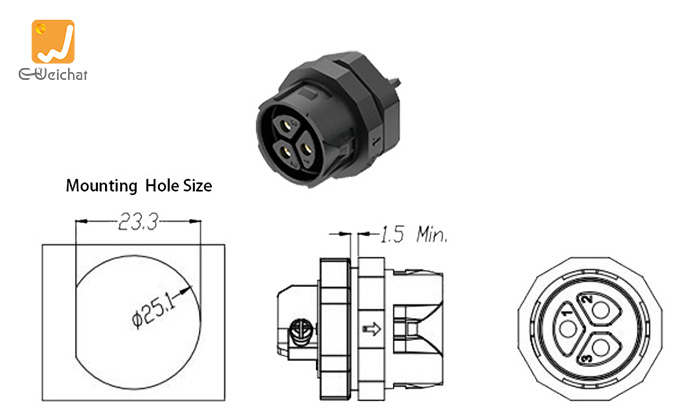

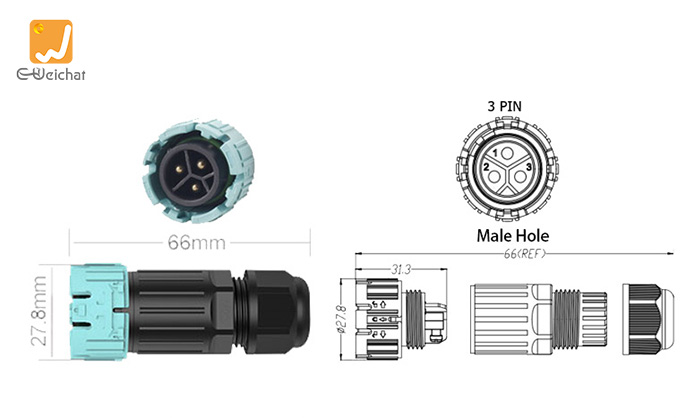

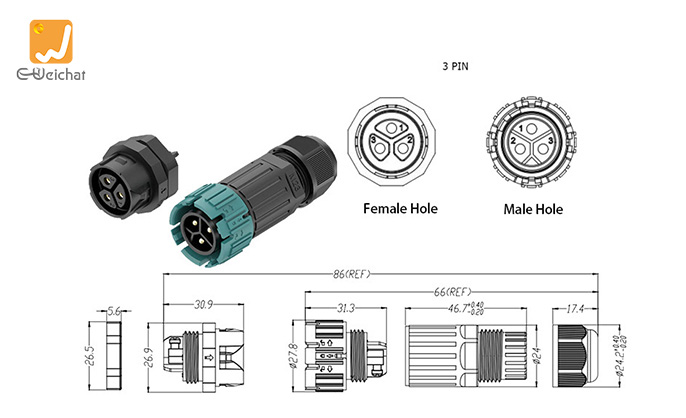

Product size
