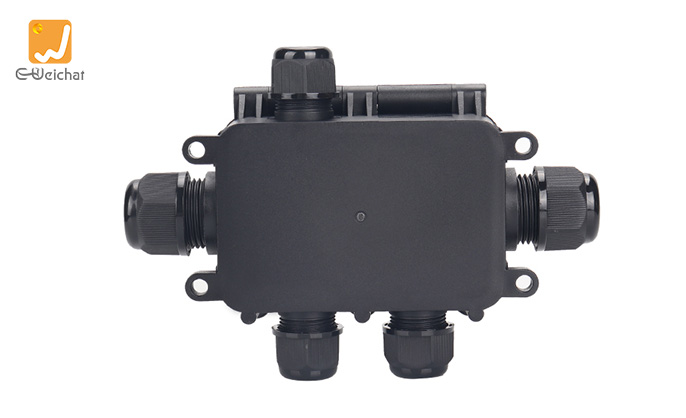

2068-5T Straight Through Cable Connector Waterproof Junction Box Outdoor 5 Way

Main parameter
Wiring ModeScrew Type
TypeOne in Four Out
Poles 5 Way
Material Plastic
Waterproof Ring2*M20:5-9mm,9-12mm M16:3.5-7mm,7-10mm
Wire Section0.5-6mm²
Protection LevelIP68
Part No
Product Specifications
Product features Product parameters Product size Product recommendations Product application

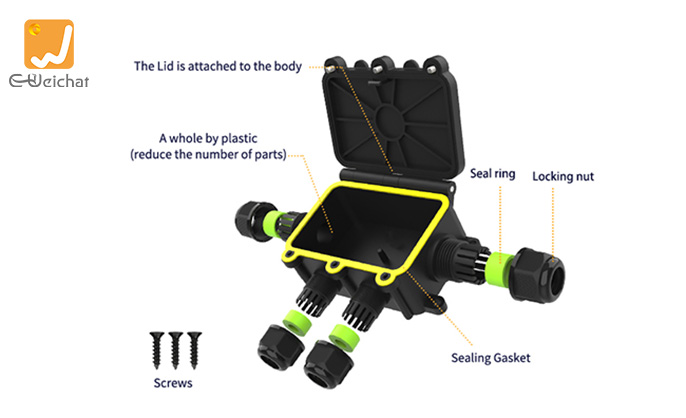

Product features

Waterproof junction box series installation_01.jpg

Product parameters
Product 2068-2T 2068-3T 2068-4TA 2068-4TB 2068-5T 2068-6T
Connection Range 0.5-6.0 m㎡
Rated Current 40A
Rated Voltage 450V
Ambient Temperature -40℃ ~ +105℃
Outer Diameter 5-9mm 9-12mm M20:5-9mm 9-12mm M16:3.5-7mm 7-10mm
Product size


Product recommendations
