2068-4TB Straight Through IP68 Waterproof Junction Box

Main parameter
Wiring ModeScrew Type
TypeOne in Three Out
Poles 4Way
Material Plastic
Waterproof Ring2*M20:5-9mm,9-12mm M16:3.5-7mm,7-10mm
Wire Section0.5-6mm²
Protection LevelIP68
Part No
Product Specifications
Product features Product parameters Product size Product recommendations Product application

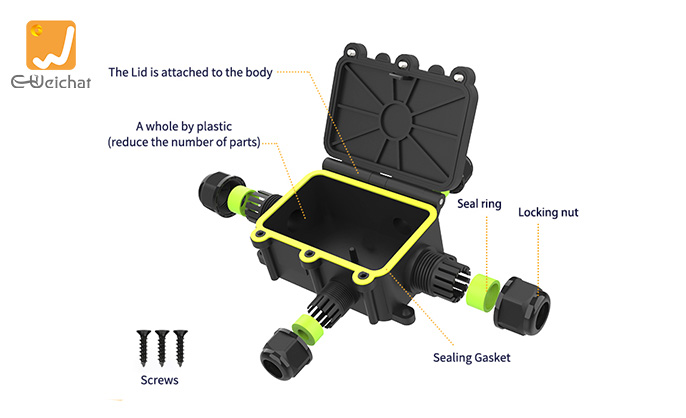

Product features

Waterproof junction box series installation_01.jpg

Product parameters
Product2068-2T2068-3T2068-4TA2068-4TB2068-5T2068-6T
Connection Range0.5-6.0 m㎡
Rated Current40A
Rated Voltage450V
Ambient Temperature-40℃ ~ +105℃
Outer Diameter5-9mm 9-12mmM20:5-9mm 9-12mm M16:3.5-7mm 7-10mm
Product size
