2068S-5T Straight Through IP68 Waterproof Junction Box

Main parameter
Wiring ModeScrew Type
TypeOne in Four Out
Poles 5 Way
Material Plastic
Waterproof Ring3*M20:5-9mm,9-12mm 2*M25:5-9mm,9-12mm,10-14mm
Wire Section0.5-6mm²
Protection LevelIP67
Part No
Product Specifications
Product features Product parameters Product size Product recommendations Product application

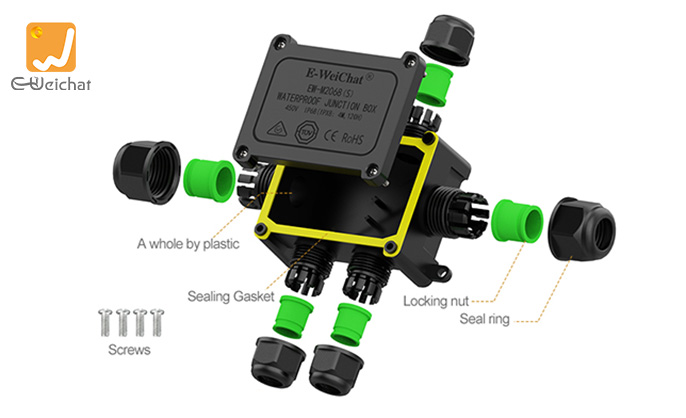

Product features

Waterproof junction box series installation_01.jpg

Product parameters
ProductM2068S-2TM2068S-3TM2068S-4TAM2068S-4TBM2068S-5TM2068S-6T
Connection Range0.5-6.0 m㎡
Rated Current40A
Rated Voltage450V
Ambient Temperature-40℃ ~ +105℃
Outer DiameterM20:5-12mm M20:5-14mm

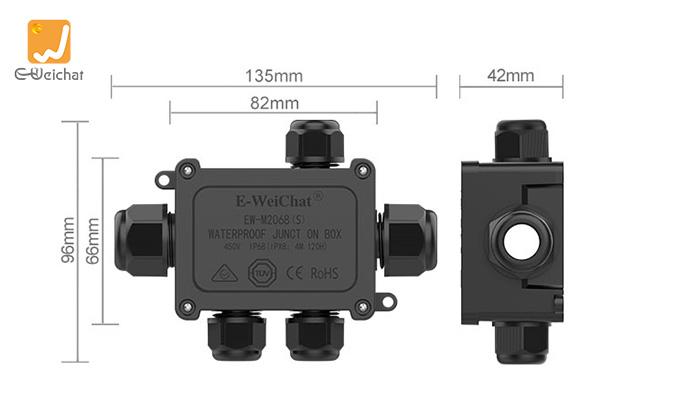

Product size
