2068S-4TA Straight Through 4 Way Junction Box Outdoor Cable Connector

Main parameter
Wiring ModeScrew Type
TypeOne in Three Out
Poles 4 Way
Material Plastic
Waterproof Ring2*M20:5-9mm,9-12mm 2*M25:5-9mm,9-12mm,10-14mm
Wire Section0.5-6mm²
Protection LevelIP67
Part No
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

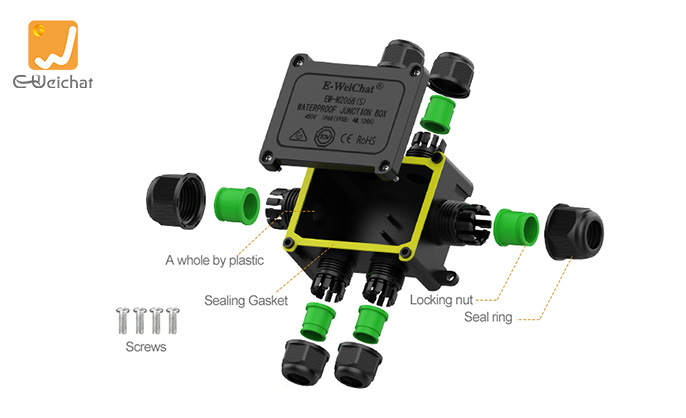

Waterproof junction box series installation_01.jpg

Product parameters
Product M2068S-2T M2068S-3T M2068S-4TA M2068S-4TB M2068S-5T M2068S-6T
Connection Range 0.5-6.0 m㎡
Rated Current 40A
Rated Voltage 450V
Ambient Temperature -40℃ ~ +105℃
Outer Diameter M20:5-12mm M20:5-14mm
Product size
