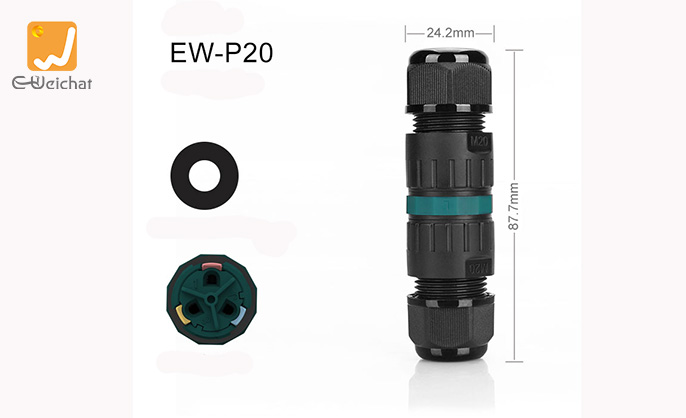

P20 IP68 Screwless Waterproof Cable Connector 2 Pin Through Type Cable Connectors Waterproof

Main parameter
Wiring ModeWire to Wire
Installation Mode Through type
Pins 2pins
MaterialPlastic
Applicable Wire Gauge0.5~1.5mm²
Waterproof Ring5-7mm/7-9mm
Protection LevelIP68
Part No
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features


Product parameters
Product P20 P25 M25B P20T P25T P20X
Wire Section 0.5-1.5 m㎡
0.5-2.5m㎡ 0.5-2.5 m㎡ 0.5-1.5 m㎡ 0.5-1.5 m㎡ 0.5-2.5 m㎡
Rated Current 16A
Rated Voltage 450V 250V
Temperature Range -40℃ ~ +105℃
Cable Diameter 5-9mm 9-12mm 5-9mm 9-12mm 10-14mm 5-9mm 9-12mm 10-14mm 5-9mm 9-12mm 5-9mm 9-12mm 5-9mm 9-12mm 10-14mm
Product size
