M20 Screw Waterproof Connector 4 Pin Through Type

Main parameter
Wiring ModeWire to Wire
Installation Mode Through type
Pins 4pins
MaterialPlastic
Applicable Wire Gauge0.5~1.5mm²
Waterproof Ring5-9mm/10-12mm
Protection LevelIP68
Part No
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features


Product parameters
ProductP20P25M25BP20TP25TP20X
Wire Section0.5-1.5 m㎡
0.5-2.5m㎡0.5-2.5 m㎡0.5-1.5 m㎡0.5-1.5 m㎡0.5-2.5 m㎡
Rated Current16A
Rated Voltage450V250V
Temperature Range-40℃ ~ +105℃
Cable Diameter5-9mm 9-12mm5-9mm 9-12mm 10-14mm5-9mm 9-12mm 10-14mm5-9mm 9-12mm5-9mm 9-12mm5-9mm 9-12mm 10-14mm

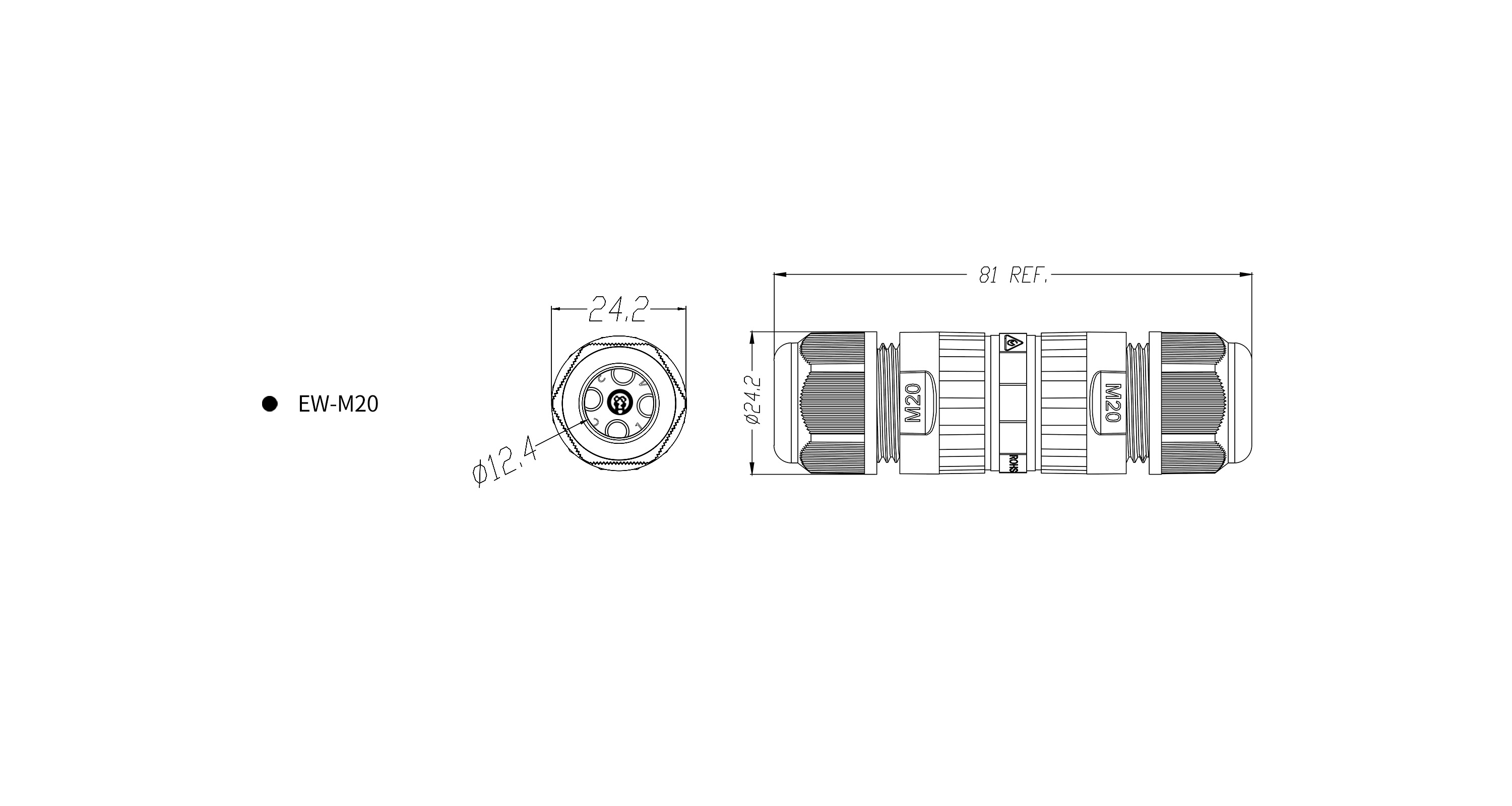

Product size


Product recommendations
