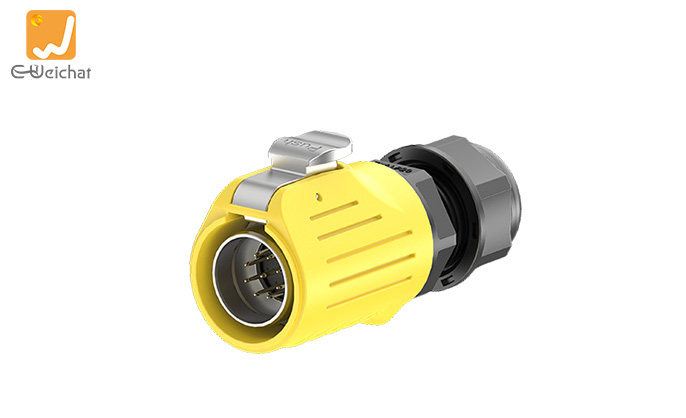

LP20 9Pin Yellow Solder Type Waterproof Connector Waterproof Aviation Plug 5A Power Panel Metal + Plastic

Main parameter
Wiring ModeSolder Type
Installation ModePanel Type
Pins9pins
MaterialMetal + Plastic
Applicable Wire Gauge0.34~0.75 mm²
Waterproof Ring12mm
Protection LevelIP67
Part No
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

LP20 waterpoor connector

Product parameters
Product LP12 LP16 LP20 LP24 LP28
Number of Pins 2-8P 2-9P 2-5/7/9/12P 2-24P 2-6/8P
Rated Current 5/3A 10/5A 20/10/5A 30/10/5A 35/30/15A
Rated Voltage 125/100V 500/250V 500/250V 500/400/250V 500/400/300V
Wire Section 0.34-0.5m㎡ 1-1.5/03.4-0.75m㎡ 2.5-4/1-1.5/0.34-0.75m㎡ 4/1.5/0.5m㎡ 16/10/6/4m㎡
Temperature Range -40℃ ~ +105℃
Cable Diameter Φ3-Φ6mm Φ4-Φ9mm Φ8-Φ12mm Φ9.5-Φ14mm Φ13-Φ20.5mm
Product size

connector plug size.jpg

panel size connector.jpg
