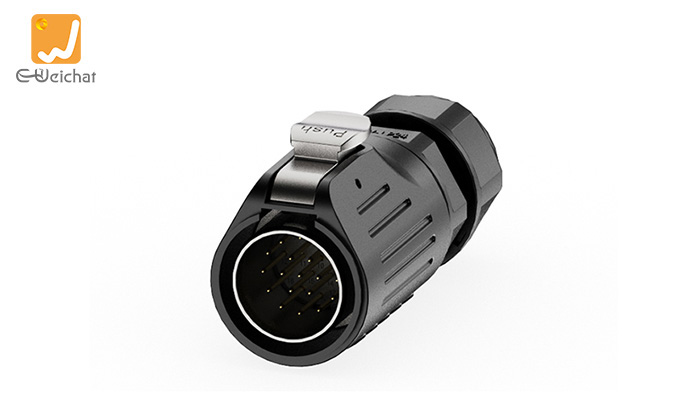

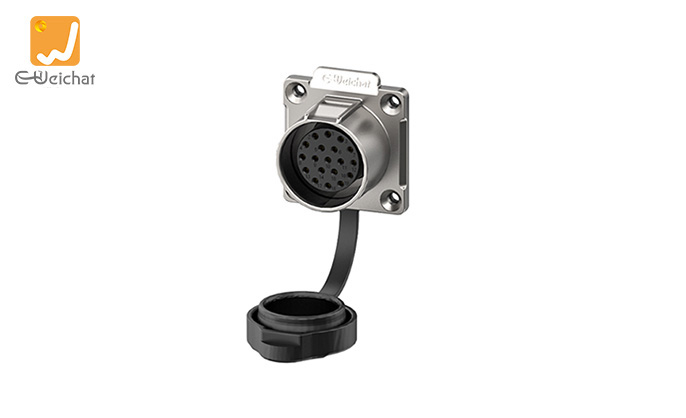

LP24 Outdoor Waterproof Electrical Wire Connector Flange 19 Pin Aviation Waterproof Connector Solder Type

Main parameter
Wiring ModeSolder Type
Installation ModeFlange Type
Pins 19pins
Material Plastic + Metal
Applicable Wire Gauge0.5mm²
Waterproof Ring14mm
Protection LevelIP67
Part NoEW-LP24S-2420BMB14/EW-LP24P-24201FB/EW-LP24S-2420BFB14/EW-LP24P-24201MB
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

LP24 Waterproof Connector

Product parameters
Product LP12 LP16 LP20 LP24 LP28
Number of Pins 2-8P 2-9P 2-5/7/9/12P 2-24P 2-6/8P
Rated Current 5/3A 10/5A 20/10/5A 30/10/5A 35/30/15A
Rated Voltage 125/100V 500/250V 500/250V 500/400/250V 500/400/300V
Wire Section 0.34-0.5m㎡ 1-1.5/03.4-0.75m㎡ 2.5-4/1-1.5/0.34-0.75m㎡ 4/1.5/0.5m㎡ 16/10/6/4m㎡
Temperature Range -40℃ ~ +105℃
Cable Diameter Φ3-Φ6mm Φ4-Φ9mm Φ8-Φ12mm Φ9.5-Φ14mm Φ13-Φ20.5mm
Product size

plug size.jpg

flange size connector.jpg
