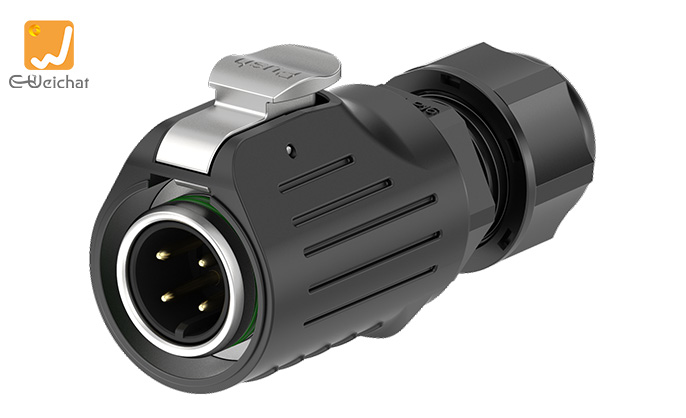

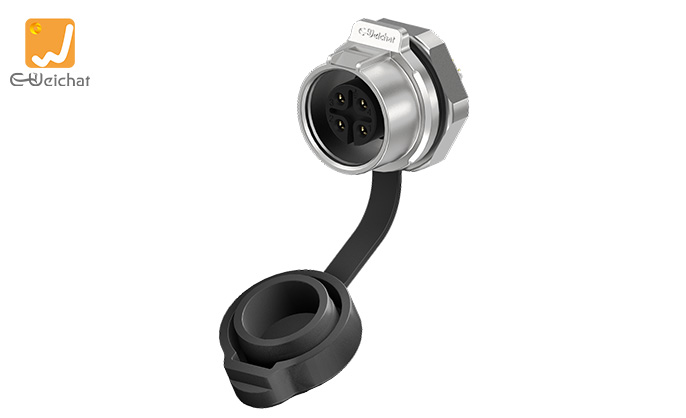

LP16 Outdoor Waterproof Wire Connectors Panel Mount 4 Pin Plastic+Metal 10A Reverse Mounting Aviation Plug Socket Screw Type

Main parameter
Wiring ModeScrew Type
Installation ModePanel Type
Pins 4pins
MaterialMetal + Plastic
Applicable Wire Gauge1~1.5 mm²
Waterproof Ring7-9mm
Protection LevelIP68
Part No
Product Categories
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

LP16 waterpoor connector

Product parameters
Product LP12 LP16 LP20 LP24 LP28
Number of Pins 2-8P 2-9P 2-5/7/9/12P 2-24P 2-6/8P
Rated Current 5/3A 10/5A 20/10/5A 30/10/5A 35/30/15A
Rated Voltage 125/100V 500/250V 500/250V 500/400/250V 500/400/300V
Wire Section 0.34-0.5m㎡ 1-1.5/03.4-0.75m㎡ 2.5-4/1-1.5/0.34-0.75m㎡ 4/1.5/0.5m㎡ 16/10/6/4m㎡
Temperature Range -40℃ ~ +105℃
Cable Diameter Φ3-Φ6mm Φ4-Φ9mm Φ8-Φ12mm Φ9.5-Φ14mm Φ13-Φ20.5mm
