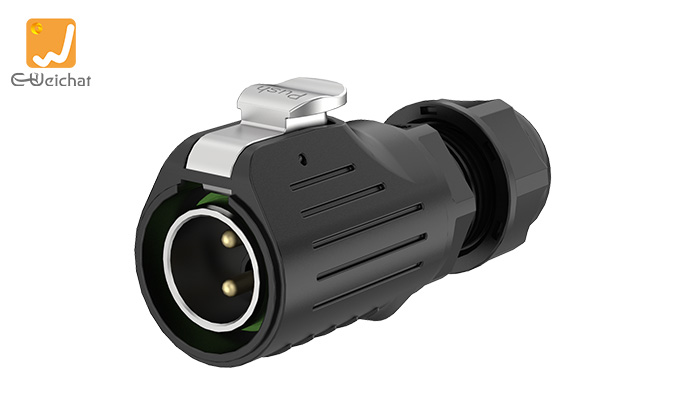

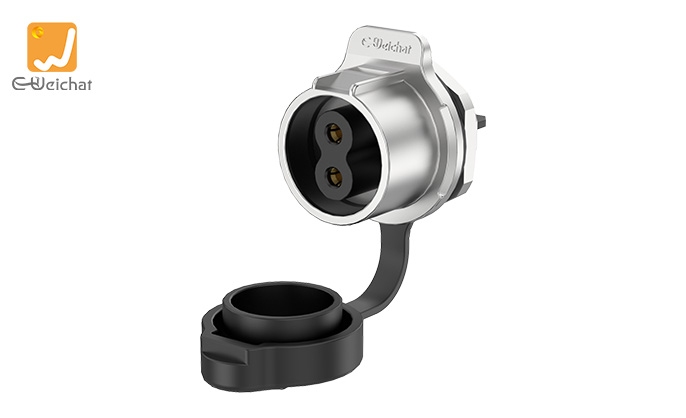

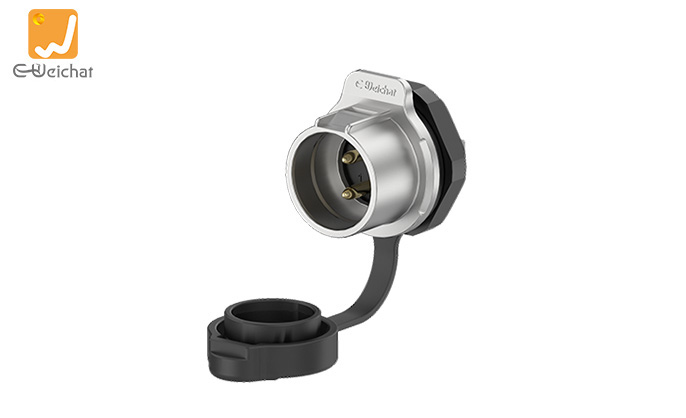

LP20 2Pin Screw Type Waterproof Connector Panel Metal + Plastic 20A Power

Main parameter
Wiring ModeScrew Type
Installation ModePanel Type
Pins2pins
MaterialMetal + Plastic
Applicable Wire Gauge2.5~4 mm²
Waterproof Ring12mm
Protection LevelIP67
Part No
Product Specifications
Product features Product parameters Product size Product recommendations Product application
Product features

LP20 waterpoor connector

Product parameters
ProductLP12LP16LP20LP24LP28
Number of Pins2-8P2-9P2-5/7/9/12P2-24P2-6/8P
Rated Current5/3A10/5A20/10/5A30/10/5A35/30/15A
Rated Voltage125/100V500/250V500/250V500/400/250V500/400/300V
Wire Section0.34-0.5m㎡1-1.5/03.4-0.75m㎡2.5-4/1-1.5/0.34-0.75m㎡4/1.5/0.5m㎡16/10/6/4m㎡
Temperature Range-40℃ ~ +105℃
Cable DiameterΦ3-Φ6mmΦ4-Φ9mmΦ8-Φ12mmΦ9.5-Φ14mmΦ13-Φ20.5mm
Product size

connector plug size.jpg

panel size connector.jpg

Product recommendations

Contact Us,Obtain connector samples and let us serve you
