Safeguarding Industrial Control With Rugged Waterproof Connectors

Safeguarding Industrial Control With Rugged Waterproof Connectors-Industrial Control Equipment

The relentless drive towards industrial automation and the Industrial Internet of Things (IIoT) has placed unprecedented demands on the heart of modern manufacturing: the control system. Programmable Logic Controllers (PLCs), Remote I/O modules, motor drives, and sensor networks form the central nervous system that dictates precision, efficiency, and safety across the factory floor. However, this critical infrastructure is perpetually under assault from a hostile environment—conductive dust, high-pressure washdowns, corrosive coolants, and wide temperature fluctuations.

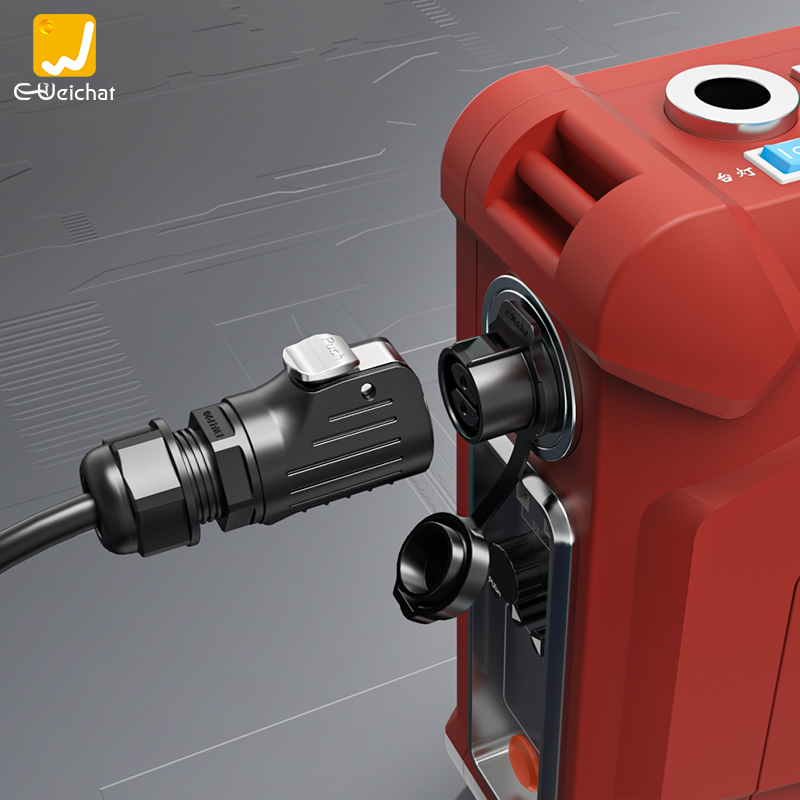

waterproof connector

A standard electrical connection, once compromised by moisture ingress, becomes a point of failure that can trigger a cascade of events: corrupted sensor data leading to production errors, short circuits causing unscheduled downtime, or even catastrophic damage to high-value machinery. Industrial waterproof connectors (rated IP66, IP67, IP68, and IP69K) are, therefore, not merely components but a fundamental insurance policy for control system integrity. They are precision-engineered to create an immutable barrier, ensuring that every millivolt of signal and every amp of power delivered to actuators and sensors remains pure and uninterrupted. This absolute reliability is the bedrock upon which predictable, continuous, and profitable industrial operation is built, enabling the transition towards lights-out manufacturing and Industry 4.0.

The application of these ruggedized connectors within a typical automated control panel and its field devices illustrates their critical role in system architecture. Consider a central control cabinet housing a PLC. Traditionally, conduit and hardwiring are used to connect to field devices, a time-consuming and inflexible approach. Modern systems utilize waterproof connectors mounted on the panel wall, creating sealed ports for outgoing cables. This allows for modularity; entire sections of a machine can be pre-wired and quickly connected or disconnected for maintenance or reconfiguration, drastically reducing downtime.

In the field, a waterproof connector links a hydraulic valve bank, ensuring that splashing fluids cannot interrupt the critical signals controlling material handling systems. Another secures the connection to a distributed I/O block mounted directly on a robotic work cell, protecting it from abrasive particulate and coolant mist. For vision systems guiding quality inspection, a sealed connector guarantees the high-speed data stream from the camera remains flawless, preventing false rejects. Each connection point, from the highest-level controller to the lowliest sensor, is fortified against its specific environmental threat, creating a seamless and protected network of intelligence and power.

The strategic deployment of industrial-grade waterproof connectivity translates directly into a powerful and measurable financial advantage, delivering a superior return on investment (ROI) that justifies the initial specification. The most significant impact is on operational uptime. In continuous process industries, a single hour of unplanned stoppage can result in tens of thousands of dollars in lost production. By virtually eliminating connection failures—a leading cause of electrical faults—waterproof connectors ensure that control systems operate without interruption, maximizing asset utilization and throughput. Secondly, they drastically reduce the total cost of ownership by slashing maintenance expenses.

Technicians are no longer burdened with troubleshooting corroded terminals, replacing damaged sensors due to water damage, or rewiring entire sections of machinery. This not only saves on labor and spare parts but also enhances safety by minimizing exposure to live electrical troubleshooting. Furthermore, the longevity of sensitive control equipment like PLCs and drives is significantly extended when they are shielded from corrosive environments by reliable peripheral connections. The ROI is clear: the investment in premium connectivity is a strategic decision that pays continuous dividends through enhanced productivity, reduced maintenance, and protected capital equipment.

The non-negotiable requirement for this level of protection becomes starkly evident in extreme industrial applications. In food and beverage processing plants, control equipment for filling and packaging machines must withstand daily aggressive, high-temperature chemical washdowns. Here, stainless steel IP69K-rated connectors are mandatory to prevent bacteria harborage and ensure compliance with stringent hygiene regulations like USDA and FDA standards.

In mining and mineral processing, control systems for conveyor belts and crushers are exposed to abrasive dust, mud, and constant vibration. connectors with robust, glass-filled nylon housings and superior sealing are required to maintain operation in these punishing conditions. For water and wastewater treatment facilities, control panels and sensors are located in humid, corrosive atmospheres and are often susceptible to flooding. connectors with IP68 ratings for prolonged submersion and chemically resistant seals are critical for maintaining public utility services. In each case, a standard connection would fail rapidly, but a properly specified industrial waterproof connector ensures that control remains uninterrupted, regardless of the operational hellscape.

Selecting the optimal industrial waterproof connector for control equipment is a deliberate engineering process that must account for a complex matrix of factors. The first step is a rigorous environmental analysis: identifying the presence of liquids (water, oil, chemicals), particulate (dust, metal shavings), mechanical stress (vibration, impact), and temperature extremes. This analysis dictates the required IP rating and material selection, such as choosing brass with nickel plating or 316 stainless steel for superior corrosion resistance.

Electrical requirements are paramount; the connector must have sufficient contacts and be rated for the correct voltage and current, whether it’s transmitting 24VDC sensor signals or 480VAC power to a motor starter. The choice between a circular or rectangular form factor often depends on space constraints and the number of circuits required. For IIoT applications, the connector must also shield against EMI/RFI to protect data integrity for Ethernet/IP, PROFINET, or other industrial protocols.

Finally, operational efficiency must be considered; connectors with tool-less, quick-disconnect features accelerate installation and maintenance, while visual mating indicators and color-coding prevent errors. Partnering with a manufacturer that provides global technical support, comprehensive certification (UL, CSA, ATEX), and a proven track record in industrial control is essential for building systems that are not only intelligent but also inherently resilient and built for decades of flawless service.
