High Performance Solar Connectors For Renewable Energy Systems

High Performance Solar Connectors For Renewable Energy Systems-New Energy Industry

The rapid expansion of renewable energy has accelerated the development of photovoltaic and energy storage systems worldwide. As solar power generation becomes more widespread, the need for reliable and efficient electrical connections has become increasingly important. Solar connectors play a critical role in ensuring stable power transmission and long-term system performance in both photovoltaic and energy storage applications. In a large-scale solar energy project combined with battery energy storage, a system integrator required a complete connection solution to link solar panels, inverters, and battery storage units. The project was located in a region with high humidity, strong UV exposure, and frequent temperature fluctuations, creating significant challenges for electrical connectivity.

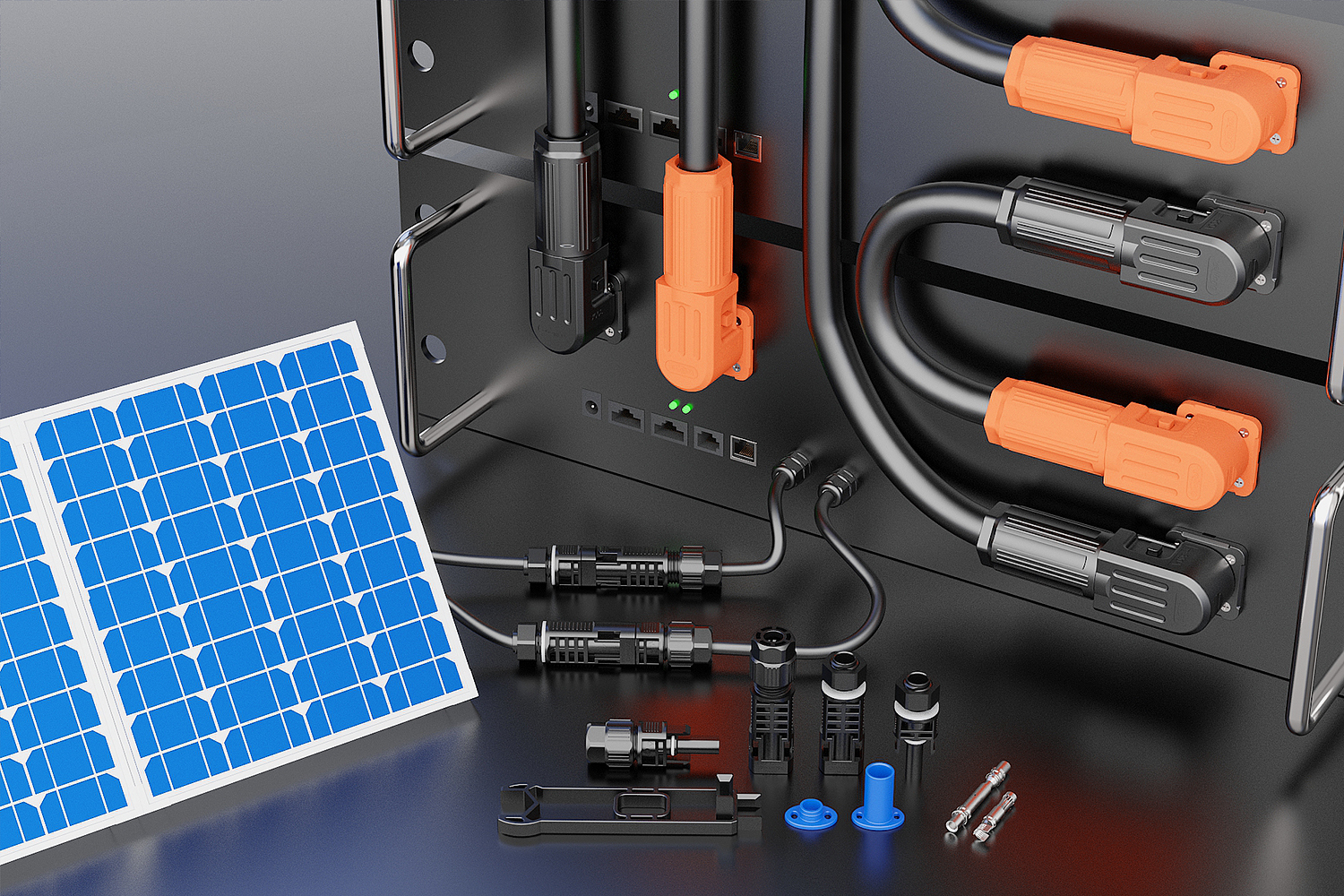

One of the key issues in such environments is maintaining stable and secure connections over long periods. Traditional connectors often suffer from water ingress, corrosion, and mechanical wear, which can lead to power loss and system failure. To address these challenges, high-performance solar connectors with waterproof protection were selected to ensure reliable operation. E-Weichat solar connectors were implemented throughout the photovoltaic and energy storage system. These connectors were used to connect solar modules, combiner boxes, inverters, and battery storage units. With IP67 and IP68 protection ratings, the waterproof solar connectors provided excellent sealing performance, preventing moisture and dust from entering the connection points.

In photovoltaic systems, solar PV connectors are essential for connecting solar panels and maintaining efficient energy transmission. Low contact resistance is critical to minimize power loss and maximize energy output. The use of high-quality photovoltaic connectors ensured stable current flow between modules, improving overall system efficiency. In addition to photovoltaic connections, energy storage systems require reliable connectors to manage power transfer between batteries and control systems. Energy storage connectors must handle high current loads while maintaining stable performance. E-Weichat connectors were designed to support high current transmission, ensuring safe and efficient operation of the battery system.

Another important aspect of the project was installation efficiency. Large-scale solar and storage systems require thousands of connection points, making installation time a critical factor. The use of plug-and-play solar cable assemblies significantly simplified the installation process. Pre-assembled cables reduced on-site labor and minimized the risk of installation errors. Durability and environmental resistance were also key considerations. Outdoor solar installations are exposed to extreme weather conditions, including rain, dust, and UV radiation. IP68 solar connectors provided long-term protection, ensuring that the system could operate reliably without frequent maintenance.

The project also required flexible cable routing and system integration. Customized solar cable assemblies were developed to match the specific layout of the installation. This included variations in cable length, connector type, and configuration, allowing for optimized system design and improved performance. After the implementation of E-Weichat solar connectors and cable solutions, the system demonstrated improved reliability and efficiency. The stable performance of the connectors reduced energy loss and minimized maintenance requirements. The project achieved consistent power output and long-term operational stability.

This application highlights the importance of selecting high-quality solar connectors for photovoltaic and energy storage systems. As the demand for renewable energy continues to grow, reliable connector solutions will play an increasingly important role in ensuring the success of solar and storage projects. E-Weichat provides a comprehensive range of solar connectors, photovoltaic connectors, and energy storage connector solutions designed for demanding environments. With a focus on quality, durability, and performance, E-Weichat supports the development of efficient and reliable renewable energy systems worldwide.
