Why do you catch every traffic accident escape these days? It is because the dragnet of road video surveillance is everywhere, and it is still extending to the "capillaries" of the road - villages and other roads. So some people do something, try to escape, but in vain. Because our traffic police or public security department can directly access the data and identify the suspect and bring him to justice in minutes.

Road Vehicle Intelligent Monitoring and Recording System

Road video surveillance, the professional point is road vehicle intelligent monitoring and recording system (that is, bayonet system), can achieve the motor vehicle picture capture, vehicle license plate recognition, vehicle characteristics data collection, control comparison alarm, police interception and other functions of the station, and can run the road vehicle composition, flow distribution, violation of the situation year-round uninterrupted automatic record. Therefore, this system is widely used in the detection of traffic violations and the data support of road management.

The use of intelligent monitoring and recording system for road vehicles

The intelligent monitoring and recording system of road vehicles mainly consists of capturing unit, intelligent management terminal, optical fiber private network, workstation, data storage and control center. The front-end capture signal is processed by the intelligent management terminal, transmitted by optical fiber to the upstream workstation, etc., and stored in various servers, and the control center can view and call the surveillance video in real time.

Schematic diagram of road vehicle intelligent monitoring and recording system

For road vehicle intelligent monitoring and recording system, it involves the application of signal connector, power connector and data connector. The transmission of the front-end capture signal, as well as the transmission through the optical fiber private network, requires the use of optical fiber and other types of signal connectors; Data transmission between the display screen and the server requires the use of USB and other interface data connectors; All device terminals, including servers and displays, need power supply and a power connector is required.

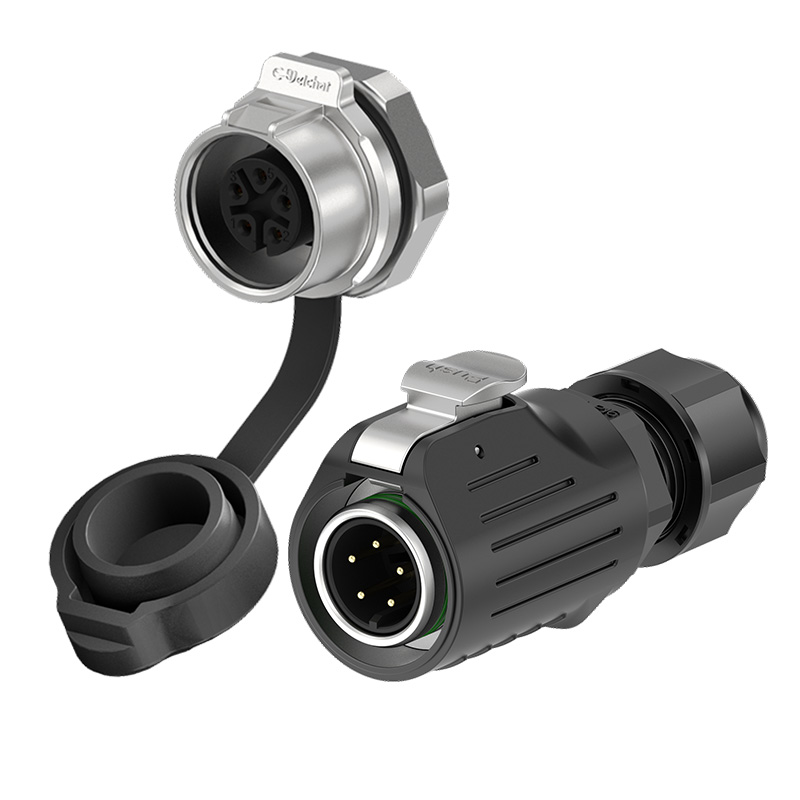

The series of industrial connector waterproof aviation plug products of E-Weichat Technology have been successfully used in road vehicle intelligent monitoring and recording system. For example, E-Weichat's RJ45 special signal connector, fiber optic connector and other signal connector products have been successfully used in the front end and back end signal transmission of road vehicle intelligent monitoring and recording system; The data connector of E-Weichat M24 series USB interface has been successfully used for the storage of video acquisition data and real-time monitoring of the data transmission connector; The 2-pin / 3-pin / 4-pin power connector of the E-Weichat M20 series has been successfully used as a connector between the power supply and equipment such as capture devices, intelligent management terminals, workstations, servers and large screen displays.

Road Vehicle Intelligent Monitoring and recording system connectivity solutions and products (part)

Video surveillance must ensure that the image transmitted to the terminal is clear, timely, and without delay. The above signal connector of E-Weichat adopts high-quality inner core material and wire, which has high transmission rate and no signal delay problem. The shield structure design and strong anti-magnetic interference capability ensure that the signal is not distorted or missing, and it will not lead to signal leakage, so as to ensure that the screen presented in the control center and other terminals is synchronized with the scene.

Capturing devices, intelligent management terminals, workstations, servers and large-screen displays and other equipment, some of them are in outdoor working environments, and the requirements for waterproof, dustproof, salt spray acid corrosion and other aspects of the connector are stricter; Road vehicle video surveillance is basically 7x24H long-term continuous operation, and the tolerance and reliability of the connector for long-term continuous operation are extremely high. The connector products of E-Weichat adopt integrated shell design + multiple sealing rings, which can realize the technical requirements of waterproof level IP65/IP67 and meet the outdoor operating conditions; Fast and convenient insertion and removal, strong connection, strong shock resistance, long-term use on site will not loosen or fall off; Gold-plated copper needle inner core, high corrosion resistance, high conductivity, effectively cope with long-term high current continuous operation of temperature rise changes, to ensure the reliability and safety of the connector long-term operation, in line with the road vehicle intelligent monitoring and recording system for long-term continuous operation of the technical requirements.

It is precisely because of the above advantages, the series of connector solutions and products of E-Weichat Technology have been successfully adopted by road vehicle intelligent monitoring and recording system applications in major cities in China, and have been approved by users with their excellent performance in practical applications.

E-Weichat Products and Solutions Services Intelligent Transportation

Road vehicle intelligent monitoring and recording system, as an important part of the construction of intelligent transportation society, has become the standard of the new infrastructure of transportation facilities in major cities and has been vigorously promoted, and its market prospects are open and the market capacity is large. E-Weichat Technology attaches great importance to the development of the intelligent transportation industry, and strives to introduce more connectivity solutions and products that meet the technical requirements of the intelligent transportation industry, and help the layout and upgrading of the national intelligent transportation industry.
